Vintage machines

Antique Henry Milnes of Bradford treadle lathe from late 1800’s to early 1900’s

Fitted with 5” (127mm) diameter 3-jaw chuck. Centre height 4” (101mm) Between centres 18” (457mm) Overall Dimensions: Length 40” (1016mm) Width 24” (610mm) Height 47” (1194mm)

Antique Henry Milnes of Bradford treadle lathe from late 1800’s to early 1900’s

Fitted with 5” (127mm) diameter 3-jaw chuck. Centre height 4” (101mm) Between centres 18” (457mm) Overall Dimensions: Length 40” (1016mm) Width 24” (610mm) Height 47” (1194mm)

1/3

Antique Pittler (Leipzig manufactured) treadle lathe from 1889 to 1890

Centre height 5” (127mm) Between centres 18” (457mm) Overall Dimensions: Length 40” (1016mm) Width 27” (686mm) Height 40” (1016mm)

Antique Pittler (Leipzig manufactured) treadle lathe from 1889 to 1890

Centre height 5” (127mm) Between centres 18” (457mm) Overall Dimensions: Length 40” (1016mm) Width 27” (686mm) Height 40” (1016mm)

1/4

Antique Buckton 3’6” radial arm drill on original box table dating from late 1800’s to early 1900's

Length of arm 3’6” (990mm) Spindle to column 36” (914mm) Spindle traverse 20” (508mm) Spindle diameter 4” (102mm) Max clearance under arm to box table 30” (762mm) Box table 63” x 30” x 30” (1600mm x 762mm x 762mm) Overall Dimensions: Length 72” (1830mm) Width 59” (1500mm) Height 110” (2800mm)

Antique Buckton 3’6” radial arm drill on original box table dating from late 1800’s to early 1900's

Length of arm 3’6” (990mm) Spindle to column 36” (914mm) Spindle traverse 20” (508mm) Spindle diameter 4” (102mm) Max clearance under arm to box table 30” (762mm) Box table 63” x 30” x 30” (1600mm x 762mm x 762mm) Overall Dimensions: Length 72” (1830mm) Width 59” (1500mm) Height 110” (2800mm)

1/5

Antique Butler of Halifax 42” vertical boring and turning mill from early 1900’s

Table diameter 42” (1067mm) Max swing 48” (1220mm) Max height under rail 38” (965mm) Length of cross rail 48 1/2” (1232mm) Width of tool post saddle 16” (406mm) Complete with original flywheel-drive, speeds and feeds assy. For connecting to overhead line shaft. Also, original counterweight and suspension chain etc. Overall Dimensions: Height 97” (2464mm) Width 70” (1778mm) Front to back 104” (2642mm)

Antique Butler of Halifax 42” vertical boring and turning mill from early 1900’s

Describe your image

Antique Butler of Halifax 42” vertical boring and turning mill from early 1900’s

Table diameter 42” (1067mm) Max swing 48” (1220mm) Max height under rail 38” (965mm) Length of cross rail 48 1/2” (1232mm) Width of tool post saddle 16” (406mm) Complete with original flywheel-drive, speeds and feeds assy. For connecting to overhead line shaft. Also, original counterweight and suspension chain etc. Overall Dimensions: Height 97” (2464mm) Width 70” (1778mm) Front to back 104” (2642mm)

1/6

Antique Federal (USA) miniature size double column metal planer with line shaft drive assy

Table size 30” x 8 1⁄2” (762mm x 216mm) Width between columns 9 1⁄2” (241mm) Height under rail 6 1⁄2” (165mm) Width across bed 6” (152mm) Overall Dimensions: Length 37” (940mm) Width 25” (635mm) Height 25” (635mm)

IMG_0920

Antique Federal (USA) miniature size double column metal planer with line shaft drive assy

Table size 30” x 8 1⁄2” (762mm x 216mm) Width between columns 9 1⁄2” (241mm) Height under rail 6 1⁄2” (165mm) Width across bed 6” (152mm) Overall Dimensions: Length 37” (940mm) Width 25” (635mm) Height 25” (635mm)

1/3

Antique Edward Hines lathe from late 1800’s to early 1900’s with original accessories

Centre height 4 1⁄2” (114mm) Between centres 20” (508mm) Overall Dimensions: Length 50” (1270mm) Width 30” (762mm) Height 46” (1168mm)

Antique Edward Hines lathe from late 1800’s to early 1900’s with original accessories

Centre height 4 1⁄2” (114mm) Between centres 20” (508mm) Overall Dimensions: Length 50” (1270mm) Width 30” (762mm) Height 46” (1168mm)

1/3

Vintage Arthur Firth miniature hand operated metal planer from early 1910’s to late 1920’s

Table size (working surface) 16” x 5 1⁄2” (406mm x 140mm) Table overall length 19” (483mm) Width between columns 6 1⁄4” (159mm) Height 20 1⁄2” (521mm) Height under rail 4” (102mm)

Vintage Arthur Firth miniature hand operated metal planer from early 1910’s to late 1920’s

Table size (working surface) 16” x 5 1⁄2” (406mm x 140mm) Table overall length 19” (483mm) Width between columns 6 1⁄4” (159mm) Height 20 1⁄2” (521mm) Height under rail 4” (102mm)

1/3

Antique Asquith of Halifax double column planer from mid to late 1800’s

Table size 56” x 21” (1422mm x 533mm) Width between columns 30” (762mm) Height under rail 21” (533mm) Width across bed 15” (381mm) Table to floor 31 1⁄4” (794mm) Overall Dimensions: Length 81” (2057mm) Width 63” (1600mm) Height 74” (1880mm)

IMG_0706 2

Describe your image

IMG_0893

Describe your image

Antique Asquith of Halifax double column planer from mid to late 1800’s

Table size 56” x 21” (1422mm x 533mm) Width between columns 30” (762mm) Height under rail 21” (533mm) Width across bed 15” (381mm) Table to floor 31 1⁄4” (794mm) Overall Dimensions: Length 81” (2057mm) Width 63” (1600mm) Height 74” (1880mm)

1/3

Vintage Atlas miniature hand operated metal planer from early 1900’s to late 1920’s

Table 12” x 5 1⁄2” (305mm x 140mm) Table overall length 15” (381mm) Width between columns 6” (152mm) Height under rail 4 1⁄2” (114mm) Overall Dimensions: Length 19 1⁄4” (489mm) Width 19” (483mm) Height 26 1⁄2” (673mm)

Vintage Atlas miniature hand operated metal planer from early 1900’s to late 1920’s

Table 12” x 5 1⁄2” (305mm x 140mm) Table overall length 15” (381mm) Width between columns 6” (152mm) Height under rail 4 1⁄2” (114mm) Overall Dimensions: Length 19 1⁄4” (489mm) Width 19” (483mm) Height 26 1⁄2” (673mm)

1/4

Vintage Atlas No.2 bench type hand operated metal shaper from 1920’s to 1930’s

Table size 12” x 7” (305mm x 178mm) Head traverse 12” (305mm) Distance from tool to table upto 8”

Vintage Atlas No.2 bench type hand operated metal shaper from 1920’s to 1930’s

Table size 12” x 7” (305mm x 178mm) Head traverse 12” (305mm) Distance from tool to table upto 8”

1/4

Vintage Drummond bench type hand operated metal shaper from early 1900’s

Table size 9” x 8” (229mm x 203mm) Cross traverse 7” (178mm) Vertical traverse 4 1⁄2” (114mm)

Vintage Drummond bench type hand operated metal shaper from early 1900’s

Table size 9” x 8” (229mm x 203mm) Cross traverse 7” (178mm) Vertical traverse 4 1⁄2” (114mm)

1/3

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s

Table size 21 1⁄4” x 6 1⁄4” (540mm x 159mm) Width between columns 6 3⁄4” (171mm) Height under rail 5 1⁄4” (133mm) Overall Dimensions: Length 21 1⁄4” (540mm) Width 24” (610mm) Height 24 1⁄2” (622mm)

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s

Table size 21 1⁄4” x 6 1⁄4” (540mm x 159mm) Width between columns 6 3⁄4” (171mm) Height under rail 5 1⁄4” (133mm) Overall Dimensions: Length 21 1⁄4” (540mm) Width 24” (610mm) Height 24 1⁄2” (622mm)

1/4

Vintage ‘The Norvic’ made by Ormerod of Manchester hand operated metal shaper from 1920’s to 1930’s

Table size 8” x 6” (203mm x 152mm) Ram stroke 11” (280mm) Cross traverse 9” (230mm) Distance from tool to table upto 6” (152mm)

Vintage ‘The Norvic’ made by Ormerod of Manchester hand operated metal shaper from 1920’s to 1930’s

Table size 8” x 6” (203mm x 152mm) Ram stroke 11” (280mm) Cross traverse 9” (230mm) Distance from tool to table upto 6” (152mm)

1/3

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s

Table size (working surface) 15” x 6 1⁄4” (381mm x 159mm) Table overall length 18” (457mm) Width between columns 7” (178mm) Height under rail 6” (152mm) Overall Dimensions: Length 20” (508mm) Width 22” (559mm) Height 20” (508mm)

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s1

Vintage Tom Senior miniature hand operated metal planer from early 1920’s to late 1940’s

Table size (working surface) 15” x 6 1⁄4” (381mm x 159mm) Table overall length 18” (457mm) Width between columns 7” (178mm) Height under rail 6” (152mm) Overall Dimensions: Length 20” (508mm) Width 22” (559mm) Height 20” (508mm)

1/3

Antique Oliver (USA) wire drawing machine dating from late 1800’s complete with original die set

Overall dimensions: Length 47” (1194mm) Width 22” (560mm) Height 38 1⁄2” (980mm)

Antique Oliver (USA) wire drawing machine dating from late 1800’s complete with original die set

Overall dimensions: Length 47” (1194mm) Width 22” (560mm) Height 38 1⁄2” (980mm)

1/2

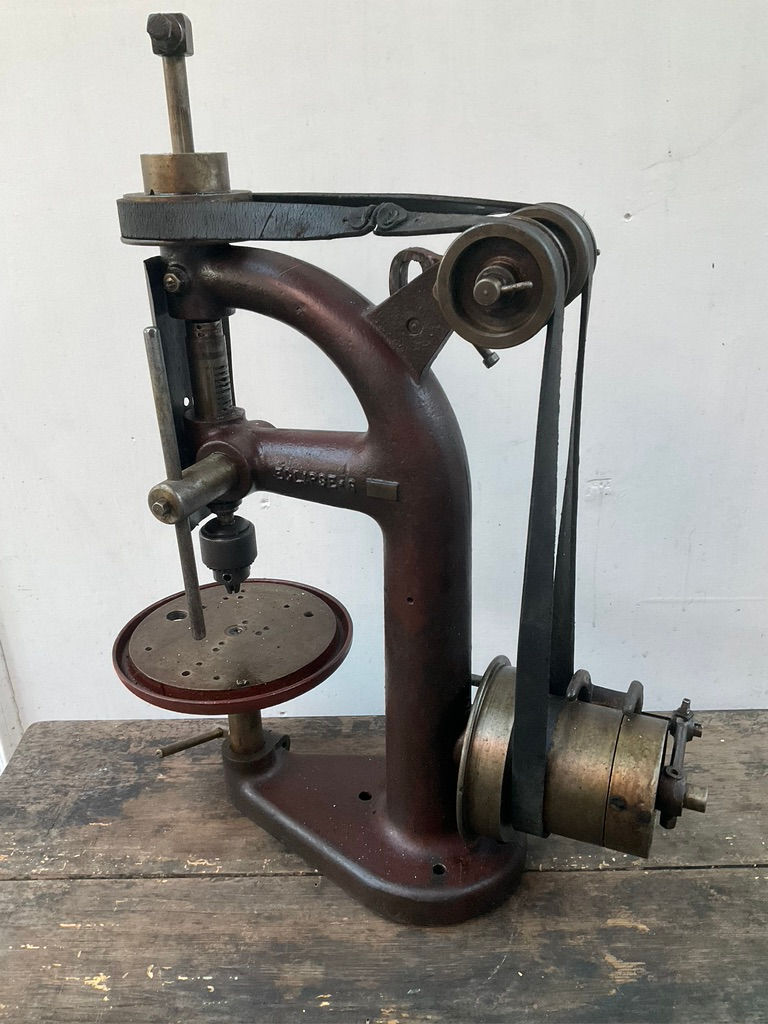

Antique Eclipse bench drill dating from late 1800’s with 7 1⁄2” (190mm) diameter r+f table

Overall dimensions: Height 23” (584mm) Width 10” (254mm) Front to back 21” (533mm)

Antique Eclipse bench drill dating from late 1800’s with 7 1⁄2” (190mm) diameter r+f table

Overall dimensions: Height 23” (584mm) Width 10” (254mm) Front to back 21” (533mm)

1/2
